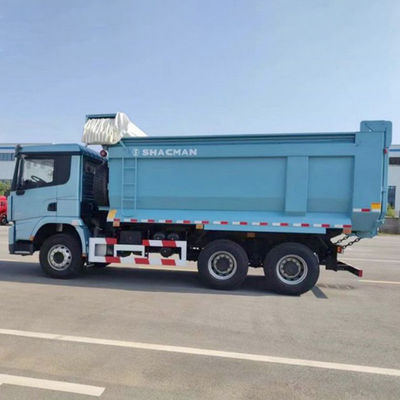

Shacman 6X4 X3000 Heavy Dump Truck with Fast Gearbox and Rear Camera
Product Details:
| Place of Origin: | China |
| Brand Name: | Shacman |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $43,800.00 - $56,600.00/units |
| Payment Terms: | T/T, L/C, Cash |
|
Detail Information |
|||
| Condition: | New | Steering: | Left |
|---|---|---|---|
| Horsepower: | 351 - 450hp | Emission Standard: | Euro 3 |
| Segement: | Heavy Truck | Market Segement: | Mining Transportation |
| Engine Brand: | WEICHAI | Fuel Type: | Diesel |
| Engine Capacity: | > 8L | Gear Box Brand: | FAST |
| Transmission Type: | Automatic | Forward Shift Number: | 12 |
| Reverse Shift Number: | 2 | Maximum Torque(Nm): | 1500-2000Nm |
| Cargo Tank Dimension: | 5800*2350*1600mm | Cargo Tank Length: | 5.3-6.2M |
| Gross Vehicle Weight: | 10-15T | Capacity (Load): | 31 - 40T |
| Fuel Tank Capacity: | 300-400L | Drive Wheel: | 6x4 |
| Passengers: | 2 | Driver's Seat: | Normal |
| Rear Camera: | Camera | ABS(Antilock Braking System): | Yes |
| ESC(Electronic Stability Control System): | Yes | Touch Screen: | None |
| Window: | Automatic | Air Conditioner: | Manual |
| Tire Number: | 10 | After-sales Service Provided: | Onsite Installation, Video Technical Support, Overseas Call Centers, Online Support, Free Spare Parts, Field Maintenance And Repair Service |
| Product Name: | Dump Truck | Brand: | Shacman |
| Driving Type: | LHD RHD | Loading Capacity: | 31-40 Ton |
| Engine Model: | Cummins/Weichai | Color: | Customer's Requirement |
| Cab: | Flat | Gearbox: | Fast |
| Warranty: | 12 Months | Max Speed: | 40-55/75 KM/h |
| Port: | TIANJIN/QINGDAO/SHANGHAI/LIANYUNGANG | ||
Product Description
Product Description
Specification
|
Product name
|
Dump Truck
|
|
Brand
|
Shacman
|
|
Model
|
SX3255DR384
|
|
Wheel base
|
3750+1350mm
|
|
Maximum speed(km/h)
|
40～55/75
|
|
Ground clearance
|
>314
|
|
Engine brand
|
Weichai/Cummins
|
|
Power
|
350-430hp
|
|
Emission standard
|
Euro 2 or Euro 3
|
|
Gear box brand
|
Fast
|
|
Gear box gears
|
9 forwards & 1 reserve shifts
|
|
Clutch
|
Diaphragm spring clutch φ430
|
|
Cooling
|
Domestic heat sink
|
|
Air inlet
|
Rotary inlet flat pipe, common air filter
|
|
Brakes
|
type: Drum brake
service brake: Double circuit air brake
park brake: Rear wheel spring brake
auxiliary brake: WEVB engine exhaust brake WEVB
|
|
Steering
|
ZF8098 technology, circulating ball steering machine
|
|
|
|
|
Chassis
|
Parallel trapezoidal frame with variable section
850×300(8+7)
|
|
Suspension
|
front: Multiple spring, two main plates + Four riding bolts
rear: Multiple spring, two main plates + Four riding bolts
|
|
Axles
|
brand: HANDE
front axle: 9.5T Man front axle MAN technology
rear axle: 16T Man Bipolar Reduction widening Drive axle with interhelix differential and differential lock, bridge speed ratio: 5.92
|
|
Tires
|
12R22.5
|
|
Fuel tank
|
300-400L
|
|
Electrics
|
24V, 165Ah maintenance-free battery
|
|
Cab
|
Extended flat roof cab
|
|
Equipment
|
Hydraulic main seats, elasticated headrests, four-point hydraulic suspension, normal mirrors, hot-zone version air conditioning,
Jack scale technology compressor, manual window rollers, manual sunroof, manual flip-up, domestically produced six-channel ABS, copper water tanks, fiberglass bumpers, front lower protection, tachograph, cruise control system, SHACMAN logos, all-English logos. |
|
Box
|
inner size: 5600×2300×1500mm
lifting type: front lifting
bottom panel/side compartment: 8/6mm
the rest are standard; |
Packing & Delivery
Nude packing in waxing by bulk or roller-roller
Company Profile
FAQ
1. Who are we?
We are based in Henan, the center of China, start from 2015 out of the net.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Shacman heavy truck, Shacman tractor, XCMG construction machinery, CIMC semi trailer, Mining machinery, and related parts. 4. why should you buy from us not from other suppliers? a. Over ten years experience in truck, trailers, and machinery. b. A wide range of products c. Products are in good quality and good prices d. Quick respond time, good service before and after sale e. Short delivery time. 5. what services can we provide? Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DAP； Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, Cash; Language Spoken: English, Chinese
